Flow Solutions Products for Oil &
Gas, Power and Steel Industry

• Cast and Forged Construction - Side/Top Entry, Fully welded
• Floating Ball & Trunnion mounted
• Single piece, Split body - 2 Piece and 3 Piece
• 2 way, 3 way & 4 way
• Metal seated
• Double block & bleed
• PFA/PTFE Lined valves
• Cryogenic
• HIPPS – SIL 2 & SIL 3

• Concentric soft seated

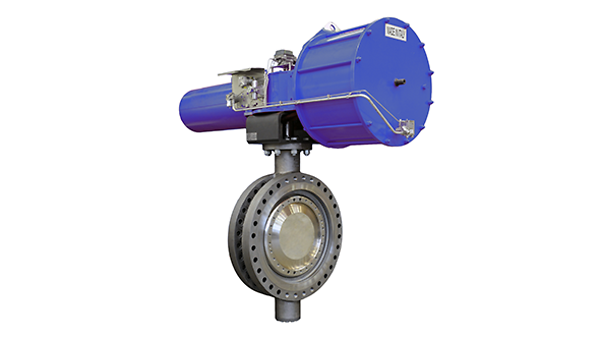

• Double/Triple offset high performance
• AWWA C504 for water
• Cryogenic
• Lined valves
• HIPPS – SIL 2 & SIL 3

• Cast and Forged Construction
• Zero Leakage Metal seated
• On-Off applications automated valves
• Tight shut- off and bi- directional for storage terminals

• Cast and Forged Construction
• Parallel slide
• API 6D Slab Gate
• API 6D Expanding Gate
• API 600 Gate
• Pressure Seal, Bellows Sealed
• Welded Bonnet
• Integral Flanged
• Cryogenic
• Severe service
• HIPPS – SIL 2 & SIL 3

• Cast and Forged
• Angle Globe
• Y Type
• Pressure Seal
• Cryogenic
• Bellows Sealed
• Integral Flanged
• Lined Valves
• HIPPS – SIL 2 & SIL 3

• Cast and Forged
• Swing Check
• Lift Check
• Piston Check
• Y Check
• Wafer Type - Single/Dual
• Nozzle Type
• Pressure Seal
• Welded Bonnet
• Integral Flanged
• Lined Valves

• Cast and Forged Construction
• Globe Control
• Butterfly Control
• Anti-Surge Control
• Axial Flow Control
• Self-Operated Control
• Pressure Regulating
• Pressure Relief
• Flush Bottom
• HIPPS – SIL 2 & SIL 3 Valve Assemblies

• Pneumatic – Single/Double Acting
• Electro-Hydraulic
• Gas-over-Oil
• Electric Actuators
• Actuator Control Panels
• Air Volume Tanks
• Smart Positioners
• Position Switches
• Solenoid Valves
• Air Filters and Regulators
• Mounting Brackets & Couplers
• Tubing & Accessories

1. Material of Construction

• Carbon Steel: IS 2062, SA 516 Gr-70, SS304, SS316
• Hard Liner Plates applied on media-exposed areas for wear resistance
• Liner hardness options: 400 BHN, 500 BHN, 600 BHN, 700 BHN
• Suitable for abrasive solid materials like powder, clinker, coal, dust-laden gas, etc.
• Designed for working temperatures up to 850°C and pressure up to 1 bar

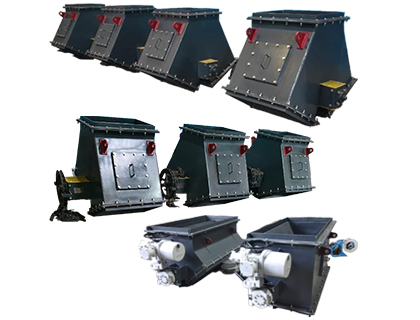

2. Types of Flap / Flapper Gates

• Single Leaf Flap Gate – For standard isolation applications
• Double Leaf Flap Gate – For large ducts or rectangular openings
• Vertical Installation in Duct
• Actuated Designs (manual, pneumatic, or electric)

3. Technical Highlights

• Heavy-duty fabrication for solid-laden gas and abrasive applications
• Leakage control with metal-to-metal sealing.
• Can integrate with automated process control systems

4. Industry Applications

• Oil & Gas: Flare gas lines, isolation in dust-laden exhaust systems
• Steel Plants: Material handling system, Blast furnace gas ducts, sinter plant exhaust
• Cement & Mining: Material handling system, Clinker handling, preheater ducting
• Thermal Power Plants: Material handling system, Boiler and furnace exhaust handling
